How to make a list extractor

Authored by Jean-Pierre Ledure.

Use the right, left, up and down arrows to move items from a listbox to another listbox and rearrange them.

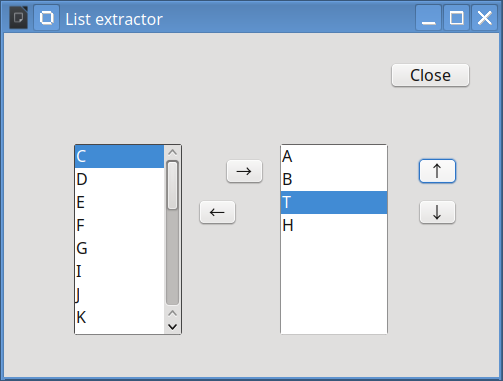

List extractor dialog.
List extractor dialog.

How to run it in BASIC

Create a new document.

  1. Open the Basic IDE
  2. Select the first available blank module
  3. Copy and paste the Basic code
  4. Verify line 16
  5. Run Main()

How to run it in Python

Create a new document.

  1. Run APSO
  2. Create a new module, call it 'Module1'
  3. Copy and paste the Python code below
  4. Verify line 15
  5. Save and run the Main() method

Code

REM  SCRIPTFORGE WIKI EXAMPLE
REM 	How to make a list selector ?
REM		Minimal required version: LibreOffice 7.6
REM 	Used services
REM 		SFDialogs.Dialog, SFDialogs.DialogControl, ScriptForge.Array

Option Explicit

Public dialog		As Object		'	The SFDialogs.Dialog object
Public inputlist	As Object		'	A SFDialogs.DialogControl object
Public outputlist	As Object			'	Id.

'*******************************************************************
'***	Adjust module name if not "Module1'
'*******************************************************************
Const onaction = "vnd.sun.star.script:Standard.Module1.ProcessLists?language=Basic&location=document"

'*******************************************************************
'* Run the demo below
'*******************************************************************
Sub Main(Optional event As Object)
	GlobalScope.BasicLibraries.loadLibrary("ScriptForge")
	SetupDialog()
	dialog.Execute()
	dialog.Terminate()
End Sub

'*******************************************************************
'* Specific demo code
'*******************************************************************
Sub ProcessLists(event As Object)
'	Routine triggered by each of the btnMove... buttons

Dim button		As Object		'	The SFDialogs.DialogControl instance representing the clicked button
Dim arr			As Object		'	ScriptForge.SF_Array module
Dim inList		As Variant		'	Input list content as an array
Dim outlist		As Variant		'	Output list content as an array
Dim invalue		As String		'	The selected item in the input list
Dim outvalue	As String		'	The selected item in the output list
Dim inindex		As Integer		'	Index of the selected item in the input list
Dim outindex	As Integer		'	Index of the selected item in the output list

	Set arr = CreateScriptService("Array")
	'	Identify the clicked button
	If IsNull(event) Then Exit Sub
	Set button = CreateScriptService("DialogEvent", event)
	'	Load the actual list contents
	inlist = inputlist.RowSource
	outlist = outputlist.RowSource
	invalue = inputlist.Value
	outvalue = outputlist.Value
	inindex = inputlist.ListIndex
	outindex = outputlist.ListIndex

	'	Act depending on the clicked button
	Select Case button.Name
		Case "btnMoveToRight"	'	Move the selected item to the end of the output list
			If UBound(inlist) < 0 Then Exit Sub		'	Do nothing if the input list is empty
			inlist(inindex) = ""
			inlist = arr.TrimArray(inlist)
			inindex = 0
			outlist = arr.Append(outlist, invalue)
			outindex = UBound(outlist)
		Case "btnMoveToLeft"	'	Bring back the item selected in the output list
			If UBound(outlist) < 0 Then Exit Sub	'	Do nothing if the output list is empty
			outlist(outindex) = ""
			outlist = arr.TrimArray(outlist)
			outindex = 0
			inlist = arr.InsertSorted(inlist, outvalue)
			inindex = arr.IndexOf(inlist, outvalue, sortorder := "ASC")
		Case "btnMoveUp"		'	Exchange the selected output item with its predecessor
			If UBound(outlist) < 1 Then Exit Sub	'	Do nothing if there is less than 2 items
			If outindex = 0 Then Exit Sub			'	Do nothing if the first item is selected
			outlist(outindex) = ""
			outindex = outindex - 1
			outlist = arr.TrimArray(arr.Insert(outlist, outindex, outvalue))
		Case "btnMoveDown"		'	Exchange the selected output item with its successor
			If UBound(outlist) < 1 Then Exit Sub	'	Do nothing if there is less than 1 item
			If outindex = UBound(outlist) Then Exit Sub	'	Do nothing if the last item is selected
			outlist(outindex) = ""
			outindex = outindex + 1
			outlist = arr.TrimArray(arr.Insert(outlist, outindex + 1, outvalue))
		Case Else
			Exit Sub
	End Select

	'	Adapt the new lists
	inputlist.RowSource = inlist
	inputlist.ListIndex = inindex
	outputlist.RowSource = outlist
	outputlist.ListIndex = outindex

End Sub

'*******************************************************************
'* May be defined with the Basic IDE
'*******************************************************************
Sub SetupDialog()
'	Build from scratch the example dialog and its controls

Dim control As Object			'	A SFDialogs.DialogControl object

	Set dialog = CreateScriptService("NewDialog", "ListSelector", Array(150, 75, 180, 125))
	dialog.Caption = "List extractor"
	With dialog
		'	The close button
		Set control = .CreateButton("btnClose", place := Array(140, 10, 30, 10), push := "OK")
		control.Caption = "Close"
		'	The listboxes
		Set inputlist = .CreateListBox("lstIn", place := Array(25, 40, 40, 70), _
							dropdown := False, linecount := 8, multiselect := False)
		inputlist.RowSource = Split("A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z", ",")
		inputlist.ListIndex = 0		'	Select the first item
		Set outputlist = .CreateListBox("lstOut", place := Array(100, 40, 40, 70), _
							dropdown := False, linecount := 8, multiselect := False)
		'	The buttons
		Set control = .CreateButton("btnMoveToRight", place := Array(80, 45, 15, 10))
			control.Caption = "→"		'	U+2192
			control.OnActionPerformed = onaction
		Set control = .CreateButton("btnMoveToLeft", place := Array(70, 60, 15, 10))
			control.Caption = "←"		'	U+2190
			control.OnActionPerformed = onaction
		Set control = .CreateButton("btnMoveUp", place := Array(150, 45, 15, 10))
			control.Caption = "↑"		'	U+2191
			control.OnActionPerformed = onaction
		Set control = .CreateButton("btnMoveDown", place := Array(150, 60, 15, 10))
			control.Caption = "↓"		'	U+2193
			control.OnActionPerformed = onaction
	End With

End Sub
# coding: utf-8
from __future__ import unicode_literals

###	SCRIPTFORGE WIKI EXAMPLE
###		How to make a list selector ?
###		Minimal required version: LibreOffice 7.6
###		Used services
###			SFDialogs.Dialog, SFDialogs.DialogControl

from scriptforge import CreateScriptService

#*******************************************************************
#	Adjust module name if not 'Module1'
#*******************************************************************
onaction = 'vnd.sun.star.script:Module1.py$ProcessLists?language=Python&location=document'


#*******************************************************************
#* Run the demo below
#*******************************************************************
def Main(event = None):
	#   dialog					The SFDialogs.Dialog object
	dialog = SetupDialog()
	dialog.Execute()
	dialog.Terminate()


#*******************************************************************
#* Specific demo code
#*******************************************************************
def ProcessLists(event = None):
	#   Routine triggered at run-time by each of the btnMove... buttons

	#	button			The dialog control instance representing the clicked button
	#	dialog			The Dialog object
	#	inputlist		The input listbox
	#	outputlist		The input listbox
	#	inlist			Input list content as an array
	#	outlist			Output list content as an array
	#	invalue			The selected item in the input list
	#	outvalue		The selected item in the output list
	#	inindex			Index of the selected item in the input list
	#	outindex		Index of the selected item in the output list

	#	Identify the clicked button and the listboxes
	if event is None:
		return
	button = CreateScriptService('DialogEvent', event)
	dialog = button.Parent
	inputlist = dialog.Controls('lstIn')
	outputlist = dialog.Controls('lstOut')

	#	Load the actual list contents
	inlist = list(inputlist.RowSource)  # RowSource returns a not modifiable tuple
	outlist = list(outputlist.RowSource)
	invalue = inputlist.Value
	outvalue = outputlist.Value
	inindex = inputlist.ListIndex
	outindex = outputlist.ListIndex

	#	Act depending on the clicked button
	if button.Name == 'btnMoveToRight':  #	Move the selected item to the end of the output list
		if len(inlist) == 0:  #	Do nothing if the input list is empty
			return
		inlist.pop(inindex)
		inindex = 0
		outlist.append(invalue)
		outindex = len(outlist) - 1
	elif button.Name == 'btnMoveToLeft':  #	Bring back the item selected in the output list
		if len(outlist) <= 0:  #	Do nothing if the output list is empty
			return
		outlist.pop(outindex)
		outindex = 0
		inlist.append(outvalue)
		inlist.sort()
		inindex = inlist.index(outvalue)
	elif button.Name == 'btnMoveUp':  #	Exchange the selected output item with its predecessor
		if len(outlist) < 2:  #	Do nothing if there is less than 2 items
			return
		if outindex == 0:  #	Do nothing if the first item is selected
			return
		outlist.pop(outindex)
		outindex = outindex - 1
		outlist.insert(outindex, outvalue)
	elif button.Name == 'btnMoveDown':  #	Exchange the selected output item with its successor
		if len(outlist) < 1:  #	Do nothing if there is less than 1 item
			return
		if outindex == len(outlist) - 1:  #	Do nothing if the last item is selected
			return
		outlist.pop(outindex)
		outindex = outindex + 1
		outlist.insert(outindex, outvalue)
	else:
		return

	#	Adapt the new lists
	inputlist.RowSource = inlist
	inputlist.ListIndex = inindex
	outputlist.RowSource = outlist
	outputlist.ListIndex = outindex

	return


#*******************************************************************
#* May be defined with the Basic IDE
#*******************************************************************
def SetupDialog():
	#	Build from scratch the example dialog and its controls

	#	dialog			The Dialog object
	#	inputlist		The input listbox
	#	outputlist		The input listbox
	#	control		DialogControl object

	dialog = CreateScriptService('NewDialog', 'ListSelector', (150, 75, 180, 125))
	dialog.Caption = 'List extractor'

	#	The close button
	control = dialog.CreateButton('btnClose', place = (140, 10, 30, 10), push = 'OK')
	control.Caption = 'Close'
	#	The listboxes
	inputlist = dialog.CreateListBox('lstIn', place = (25, 40, 40, 70),
									 dropdown = False, linecount = 8, multiselect = False)
	inputlist.RowSource = 'A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z'.split(',')
	inputlist.ListIndex = 0		#	Select the first item
	outputlist = dialog.CreateListBox('lstOut', place = (100, 40, 40, 70),
									  dropdown = False, linecount = 8, multiselect = False)
	#	The buttons
	control = dialog.CreateButton('btnMoveToRight', place = (80, 45, 15, 10))
	control.Caption = '→'  #	U+2192
	control.OnActionPerformed = onaction
	control = dialog.CreateButton('btnMoveToLeft', place = (70, 60, 15, 10))
	control.Caption = '←'  #	U+2190
	control.OnActionPerformed = onaction
	control = dialog.CreateButton('btnMoveUp', place = (150, 45, 15, 10))
	control.Caption = '↑'  #	U+2191
	control.OnActionPerformed = onaction
	control = dialog.CreateButton('btnMoveDown', place = (150, 60, 15, 10))
	control.Caption = '↓'  #	U+2193
	control.OnActionPerformed = onaction

	return dialog


g_exportedScripts = (Main,)

if __name__ == '__main__':
	Main()
