How to manage a multi-pages dialog

Authored by Jean-Pierre Ledure.

Use a listbox and/or a combo box and/or a tabbed interface and/or wizard buttons to display a single page from a multi-pages dialog.

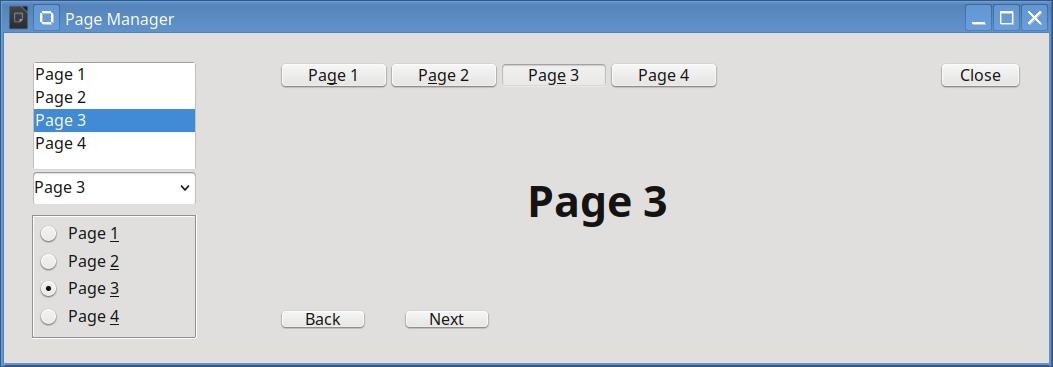

A complex dialog with many pages.
A complex dialog with many pages.

How to run it in BASIC

Create a new document.

  1. Open the Basic IDE
  2. Select the first available blank module
  3. Copy and paste the Basic code
  4. Run Main()

How to run it in Python

Create a new document.

  1. Run APSO
  2. Create a new module, call it 'Module1'
  3. Copy and paste the Python code below
  4. Save and run the Main() method

Code

REM  SCRIPTFORGE WIKI EXAMPLE
REM 	How to manage multiple pages ?
REM		Minimal required version: LibreOffice 7.6
REM 	Used services
REM 		Dialog, DialogControl

Option Explicit

Public dialog		As Object		'	The SFDialogs.Dialog object

'*******************************************************************
'* Run the demo below
'*******************************************************************
Sub Main(Optional event As Object)
	GlobalScope.BasicLibraries.loadLibrary("ScriptForge")
	SetupDialog()
	SetupPageManager()
	dialog.Execute()
	dialog.Terminate()
End Sub

'*******************************************************************
'* Specific demo code
'*******************************************************************
Sub SetupPageManager()
'	Define which controls in the dialog are responsible for switching pages
	dialog.SetPageManager( _
		pilotcontrols := "PageList,PageCombo,PageRadio1", _
		tabcontrols := "PageButton1,PageButton2,PageButton3,PageButton4", _
		wizardcontrols := "BackButton,NextButton", _
		lastpage := 4)
End Sub

'*******************************************************************
'* May be defined with the Basic IDE
'*******************************************************************
Sub SetupDialog()
'	Build from scratch the example dialog and its controls

Dim control As Object			'	A SFDialogs.DialogControl object
Dim i As Integer, s As String

	Set dialog = CreateScriptService("NewDialog", "PageManager", Array(160, 90, 380, 120))
	dialog.Caption = "Page Manager"
	With dialog
		'	The close button
		Set control = .CreateButton("CloseButton", place := Array(340, 10, 30, 10), push := "OK")
		control.Caption = "Close"

		'	The listbox
		Set control = .CreateListBox("PageList", place := Array(10, 10, 60, 40), dropdown := False)
		control.RowSource = Array("Page 1", "Page 2", "Page 3", "Page 4")
		control.ListIndex = 0
		'	The combo box
		Set control = .CreateComboBox("PageCombo", place := Array(10, 50, 60, 12), dropdown := True)
		control.RowSource = Array("Page 1", "Page 2", "Page 3", "Page 4")
		control.ListIndex = 0
		'	The radio buttons
		Set control = .CreateGroupBox("PageGroup", place := Array(10, control.Y + control.Height + 4, 60, 45))
		For i = 1 To 4
			Set control = .CreateRadioButton("PageRadio" & i, place := Array(12, control.Y + Iif(i = 1, 0, control.Height) + 2, 60, 8))
			control.Caption = "Page " & i
			If i = 1 Then control.Value = True
		Next i
		'	The tabs simulated by toggle buttons
		For i = 1 To 4
			Set control = .CreateButton("PageButton" & i, place := Array(100 + 40 * (i - 1), 10, 40, 10), toggle := True)
			control.Caption = "Page " & i
			If i = 1 Then control.Value = True		'	Push 1st button down
		Next i
		'	The wizard buttons
		For Each s In Array("Back", "Next")
			Set control = .CreateButton(s & "Button", place := Array(100 + Iif(s = "Back", 0, 45), 100, 32, 8))
			control.Caption = s
		Next s

		'	The page contents
		For i = 1 To 4
			Set control = .CreateFixedText("Page" & i, place := Array(160 + i * 10, 20 + i * 10, 150, 40))
			control.Caption = "Page " & i
			control.XControlModel.FontHeight = 32			'	Font size
			control.XControlModel.FontWeight = 150.0		'	Bold
			'	Define which controls belong tof each page
			control.Page = i
		Next i

		'	Important are the tabs set on the radio buttons : they must be contiguous to make them synced
		.OrderTabs(tabslist := Array(	"PageList", "PageCombo", _
					"PageRadio1", "PageRadio2", "PageRadio3", "PageRadio4", _
					"PageButton1", "PageButton2", "PageButton3", "PageButton4", _
					"BackButton", "NextButton", _
					"CloseButton"))
	End With
End Sub
# coding: utf-8
from __future__ import unicode_literals

###	SCRIPTFORGE WIKI EXAMPLE
###		How to maname a multi-pages dialog ?
###		Minimal required version: LibreOffice 7,6
###		Used services
###			Dialog, DialogControl

from scriptforge import CreateScriptService


# *******************************************************************
# * Run the demo below
# *******************************************************************
def Main(event = None):
	#   dialog					The SFDialogs.Dialog object
	dialog = SetupDialog()
	SetupPageManager(dialog)
	dialog.Execute()
	dialog.Terminate()


# *******************************************************************
# * Specific demo code
# *******************************************************************
def SetupPageManager(dialog):
	#	Define which controls in the dialog are responsible for switching pages
	dialog.SetPageManager(
		pilotcontrols = 'PageList,PageCombo,PageRadio1',
		tabcontrols = 'PageButton1,PageButton2,PageButton3,PageButton4',
		wizardcontrols = 'BackButton,NextButton',
		lastpage = 4)


# *******************************************************************
# * May be defined with the Basic IDE
# *******************************************************************
def SetupDialog():
	#	Build from scratch the example dialog and its controls

	#	dialog			The SFDialogs.Dialog object
	#	control			A SFDialogs.DialogControl object
	#	i, s			Loop variables

	dialog = CreateScriptService('NewDialog', 'PageManager', (160, 90, 380, 120))
	dialog.Caption = 'Page Manager'

	#	The close button
	control = dialog.CreateButton('CloseButton', place = (340, 10, 30, 10), push = 'OK')
	control.Caption = 'Close'

	#	The listbox
	control = dialog.CreateListBox('PageList', place = (10, 10, 60, 40), dropdown = False)
	control.RowSource = ('Page 1', 'Page 2', 'Page 3', 'Page 4')
	control.ListIndex = 0
	#	The combo box
	control = dialog.CreateComboBox('PageCombo', place = (10, 50, 60, 12), dropdown = True)
	control.RowSource = ('Page 1', 'Page 2', 'Page 3', 'Page 4')
	control.ListIndex = 0
	#	The radio buttons
	control = dialog.CreateGroupBox('PageGroup', place = (10, control.Y + control.Height + 4, 60, 45))
	for i in range(1, 5):
		control = dialog.CreateRadioButton('PageRadio' + str(i),
										   place = (12, control.Y + (0 if i == 1 else control.Height) + 2, 60, 8))
		control.Caption = 'Page ' + str(i)
		if i == 1:
			control.Value = True
	#	The tabs simulated by toggle buttons
	for i in range(1, 5):
		control = dialog.CreateButton('PageButton' + str(i), place = (100 + 40 * (i - 1), 10, 40, 10), toggle = True)
		control.Caption = 'Page ' + str(i)
		if i == 1:
			control.Value = True  # Push 1st button down
	#	The wizard buttons
	for s in ('Back', 'Next'):
		control = dialog.CreateButton(s + 'Button', place = (100 + (0 if s == 'Back' else 45), 100, 32, 8))
		control.Caption = s

	#	The page contents
	for i in range(1, 5):
		control = dialog.CreateFixedText('Page' + str(i), place = (160 + i * 10, 20 + i * 10, 150, 40))
		control.Caption = 'Page ' + str(i)
		control.XControlModel.FontHeight = 32  # Font size
		control.XControlModel.FontWeight = 150.0  # Bold
		control.Page = i

	#	Important are the tabs set on the radio buttons : they must be contiguous to make them synced
	dialog.OrderTabs(tabslist = ('PageList',
								 'PageCombo',
								 'PageRadio1', 'PageRadio2', 'PageRadio3', 'PageRadio4',
								 'PageButton1', 'PageButton2', 'PageButton3', 'PageButton4',
								 'BackButton', 'NextButton',
								 'CloseButton'))

	return dialog


g_exportedScripts = (Main,)

if __name__ == '__main__':
	Main()
