Macros/ScriptForge/TreeControlExample

From The Document Foundation Wiki


How to display data in a Tree control

(The easy way)

Authored by Jean-Pierre Ledure.

Navigation through a dataset by means of a Tree control. Why the easy way? Because all the data is extracted from the database before displaying the dialog.

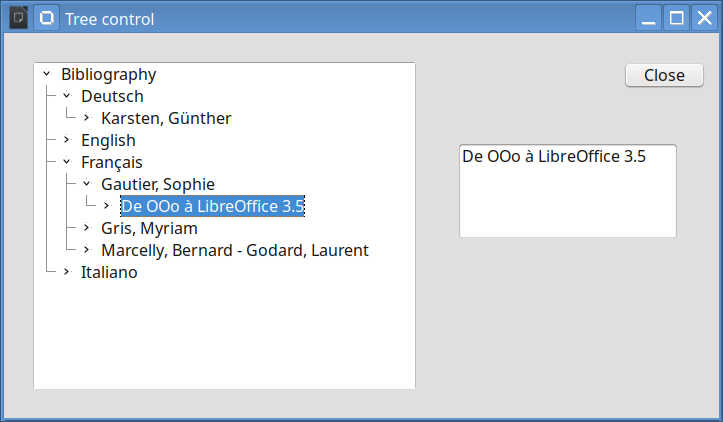

A Tree control helps displaying data in a hierarchical manner (the easy way)
Tree control to display data (the easy way)

How to run it in BASIC

Create a new document.

  1. Open the Basic IDE
  2. Select the first available blank module
  3. Copy and paste the Basic code
  4. Verify line 14
  5. Run Main()

How to run it in Python

Create a new document.

  1. Run APSO
  2. Create a new module, call it 'Module1'
  3. Copy and paste the Python code below
  4. Verify line 15
  5. Save and run the Main() method

Code

REM  SCRIPTFORGE WIKI EXAMPLE
REM 	How to interact with a tree control ?
REM		Minimal required version: LibreOffice 7.6
REM 	Used services
REM 		SFDialogs.Dialog, SFDialogs.DialogControl, SFDatabases.Database

Option Explicit

Public dialog		As Object		'	A SFDialogs.Dialog object

'*******************************************************************
'***	Adjust library and module names if not "Standard.Module1'
'*******************************************************************
Const onnodeselected = "vnd.sun.star.script:Standard.Module1.TreeSelected"& _
    "?language=Basic&location=document"

'*******************************************************************
'* Run the demo below
'*******************************************************************
Sub Main(Optional event As Object)
	GlobalScope.BasicLibraries.loadLibrary("ScriptForge")
	SetupDialog()
	LoadTree()
	dialog.Execute()
	dialog.Terminate()
End Sub

'*******************************************************************
'* Specific demo code
'*******************************************************************
Sub LoadTree()
'	Read the data in the Bibliography database and load it in the tree control

Dim treecontrol		As Object		'	A SFDialogs.DialogControl service instance
Dim database		As Object		'	A SFDatabases.Database service instance
Dim rootnode		As Object		'	com.sun.star.awt.tree.XMutableTreeNode
Dim bibliodata		As Variant		'	Data extracted from the biblio table in the Bibliography database
Dim sql				As String		'	A SELECT SQL statement

	treecontrol = dialog.Controls("Tree")
	rootnode = treecontrol.CreateRoot("Bibliography")

	'	Load the data to display in the tree control from a database as a 2D array
	database = CreateScriptService("Database", , "Bibliography")
	sql = "SELECT [Custom1] AS [Language], [Author], [Title] FROM [biblio] " _
				& "WHERE [Author] IS NOT NULL ORDER BY [Language], [Author], [Title]"
	bibliodata = database.GetRows(sql)
	database.CloseDatabase()
	treecontrol.AddSubTree(rootnode, bibliodata)

	'	Expand the first tree sublevel - the dialog must be visible
	dialog.Visible = True
	treecontrol.XControlView.expandNode(rootnode)

	'	Activate the node selection trigger
	treecontrol.OnNodeSelected = onnodeselected

End Sub

'*******************************************************************
'* Fired when an item in the Tree control is selected
'*******************************************************************
Sub TreeSelected(Optional event As Variant)
'	Triggered by the OnNodeSelected event

Dim treecontrol		As Object		'	A SFDialogs.DialogControl service instance
Dim node			As Object		'	com.sun.star.awt.tree.XTreeNode
Dim textbox			As Object		'	A SFDialogs.DialogControl service instance

	If IsNull(event) Then Exit Sub

	Set treecontrol = CreateScriptService("DialogEvent", event)
	'	Display the content of the selected node when it is not expandable
	Set node = treecontrol.CurrentNode
	If node.ChildCount = 0 Then
		Set textbox = dialog.Controls("BookDetails")
		textbox.Value = node.DisplayValue
	End If

End Sub

'*******************************************************************
'* May be defined with the Basic IDE
'*******************************************************************
Sub SetupDialog()
'	Build from scratch the example dialog and its controls

Dim control			As Object		'	A SFDialogs.DialogControl object

	Set dialog = CreateScriptService("NewDialog", "Tree", Array(115, 65, 260, 140))
 	dialog.Caption = "Tree control"

 	With dialog
		'	The close button
		Set control = .CreateButton("CloseButton", place := Array(225, 10, 30, 10), push := "OK")
		control.Caption = "Close"
		'	The tree control
		Set control = .CreateTreeControl("Tree", place := Array(10, 10, 140, 120))
		'	The textbox with the details
		Set control = .CreateTextField("BookDetails", place := Array(165, 40, 80, 35), multiline := True)
	End With

End Sub
# coding: utf-8
from __future__ import unicode_literals

#	SCRIPTFORGE WIKI EXAMPLE
#		How to interact with a Tree control ?
#		Minimal required version: LibreOffice 7.6
#		Used services:
#			SFDialogs.Dialog, SFDialogs.DialogControl, SFDatabases.Database

from scriptforge import CreateScriptService

# *******************************************************************
# ***	Adjust library and module names if not 'Standard.Module1
# *******************************************************************
onnodeselected = 'vnd.sun.star.script:Module1.py$TreeSelected?language=Python&location=document'


# *******************************************************************
# * Run the demo below
# *******************************************************************
def Main(event = None):
	#   dialog					The SFDialogs.Dialog object
	dialog = SetupDialog()
	LoadTree(dialog)
	dialog.Execute()
	dialog.Terminate()


# *******************************************************************
# * Specific demo code
# *******************************************************************
def LoadTree(dialog = None):
	#	Read the data in the Bibliography database and load it in the Tree control

    # dialog				The SFDialogs.Dialog object
	# treecontrol			A SFDialogs.DialogControl service instance
	# database				A SFDatabases.Database service instance
	# rootnode				com.sun.star.awt.tree.XMutableTreeNode
	# bibliodata			Data extracted from the biblio table in the Bibliography database
	# sql					A SELECT SQL statement

	if dialog is None:
		return
	treecontrol = dialog.Controls('Tree')
	rootnode = treecontrol.CreateRoot('Bibliography')

	#	Load the data to display in the Tree control from a database as a 2D array
	database = CreateScriptService('Database', '', 'Bibliography')
	sql = ('SELECT [Custom1] AS [Language], [Author], [Title] FROM [biblio] ' +
		   'WHERE [Author] IS NOT NULL ORDER BY [Language], [Author], [Title]')
	bibliodata = database.GetRows(sql)		#	Tuple of tuples
	database.CloseDatabase()
	treecontrol.AddSubTree(rootnode, bibliodata)

	#	Expand the first Tree sublevel - the dialog must be visible
	dialog.Visible = True
	treecontrol.XControlView.expandNode(rootnode)

	#	Activate the node selection trigger
	treecontrol.OnNodeSelected = onnodeselected


# *******************************************************************
# * Fired when an item in the Tree control is selected
# *******************************************************************
def TreeSelected(event = None):
	#	Triggered by the OnNodeSelected event

    # dialog				The SFDialogs.Dialog object
	# treecontrol			A SFDialogs.DialogControl service instance
	# node					com.sun.star.awt.tree.XTreeNode
	# textbox				A SFDialogs.DialogControl service instance

	if event is None:
		return

	treecontrol = CreateScriptService('DialogEvent', event)
	dialog = treecontrol.Parent
	#	Display the content of the selected node when it is not expandable
	node = treecontrol.CurrentNode
	if node.ChildCount == 0:
		textbox = dialog.Controls('BookDetails')
		textbox.Value = node.DisplayValue


# *******************************************************************
# * May be defined with the Basic IDE
# *******************************************************************
def SetupDialog():
	#	Build from scratch the example dialog and its controls

	# dialog				The returned SFDialogs.Dialog object
	# control				A SFDialogs.DialogControl object

	dialog = CreateScriptService('NewDialog', 'Tree', (115, 65, 260, 140))
	dialog.Caption = 'Tree control'

	#	The close button
	control = dialog.CreateButton('CloseButton', place = (225, 10, 30, 10), push = 'OK')
	control.Caption = 'Close'
	#	The tree control
	control = dialog.CreateTreeControl('Tree', place = (10, 10, 140, 120))
	#	The textbox with the details
	control = dialog.CreateTextField('BookDetails', place = (165, 40, 80, 35), multiline = True)

	return dialog

g_exportedScripts = (Main,)

if __name__ == '__main__':
	Main()
