How to handle errors occurring in events

Authored by Jean-Pierre Ledure.

Three scenarios are shown:

  • Doing nothing
  • Using the standard Basic error handling
  • Using ScriptForge facilities

The error is simulated with a simple division by zero.

This snippet is BASIC-only.

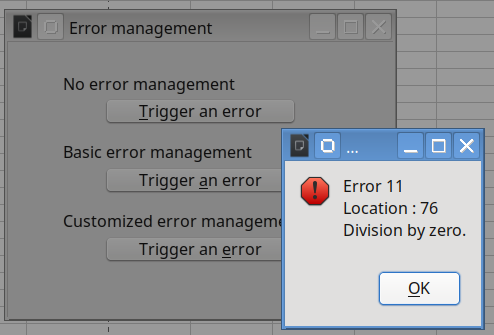

An informative dialog that pops up when error occur in event.
An informative dialog that pops up when error occur in event.

How to run it in BASIC

Create a new document.

  1. Open the Basic IDE
  2. Select the first available blank module
  3. Copy and paste the Basic code
  4. Verify lines 14-16
  5. Run Main()

REM  SCRIPTFORGE WIKI EXAMPLE
REM 	How to manage errors in scripts triggered by events ?
REM		Minimal required version: LibreOffice 7.6
REM 	Used services
REM 		SFDialogs.Dialog, SFDialogs.DialogControl, ScriptForge.Exception

Option Explicit

Public dialog		As Object		'	The SFDialogs.Dialog object

'*******************************************************************
'***	Adjust module name if not "Module1'
'*******************************************************************
Const errnomgt =	"vnd.sun.star.script:Standard.Module1.ErrMgtNone?language=Basic&location=document"
Const errbasicmgt =	"vnd.sun.star.script:Standard.Module1.ErrMgtBasic?language=Basic&location=document"
Const errsfmgt =	"vnd.sun.star.script:Standard.Module1.ErrMgt?language=Basic&location=document"

'*******************************************************************
'* Run the demo below
'*******************************************************************
Sub Main
	GlobalScope.BasicLibraries.loadLibrary("ScriptForge")
	SetupDialog()
	RunDialog()
	dialog.Terminate()
End Sub

'*******************************************************************
'* Specific demo code
'*******************************************************************
Sub RunDialog()
Dim response		As Integer
Dim exception		As Object		:	Set exception = CreateScriptService("Exception")
	response = dialog.Execute()
	Select Case response
		Case 0 			'	Cancel - Window close button
		Case 1			'	OK - Close button
		Case 2			'	Something went wrong
			'	Housekeeping
			exception.Console(False)
	End Select
End Sub


'*******************************************************************
Sub ErrMgtNone(Optional event As Variant)
REM An error message is raised on the Execute() statement (above) but location is unknown
REM The dialog is NOT terminated
Dim div As Integer
	div = 0
	MsgBox 5 / div
	Exit Sub
End Sub

'*******************************************************************
Sub ErrMgtBasic(Optional event As Variant)
REM Usual Basic error handling, error code and location are known
Dim div As Integer
Dim exc As Object	:	Set exc = CreateScriptService("Exception")
	On Local Error GoTo Finally
	div = 0
	MsgBox 5 / div
	Exit Sub
Finally:
	MsgBox Err & "/" & Erl & "/" & Error$
	On Local Error GoTo 0	'	Avoid the propagation of the error
End Sub


'*******************************************************************
Sub ErrMgt(Optional event As Variant)
REM ScriptForge error handling with debugging info
Dim div As Integer		'	Errorneous divider
Dim exc As Object		:	Set exc = CreateScriptService("Exception")
	On Local Error GoTo Finally
	div = 0
	MsgBox 5 / div
	Exit Sub
Finally:
	exc.RaiseWarning()				'	To not stop, use RaiseWarning(). To force a stop, use Raise()
	exc.Clear()						'	Avoid the propagation of the error
	exc.DebugPrint "Error in Sub ErrMgt - root cause to be investigated"
	exc.DebugPrint "div =", div		'	Note the actual values of key variables
	dialog.EndExecute(2)			'	Give feedback to caller
End Sub

'*******************************************************************
'* May be defined with the Basic IDE
'*******************************************************************
Sub SetupDialog()
'	Build from scratch the example dialog and its controls

Dim control			As Object		'	A SFDialogs.DialogControl object

	Set dialog = CreateScriptService("NewDialog", "ErrMgt", Array(170, 135, 140, 100))
 	dialog.Caption = "Error management"

 	With dialog
		'	The close button
		Set control = .CreateButton("CloseButton", place := Array(110, 85, 30, 10), push := "OK")
		control.Caption = "Close"

		'	The buttons simulating errors

		Set control = .CreateFixedText("NoErrorMgt", place := Array(20, 10, 100, 10), verticalalign := "middle")
		control.Caption = "No error management"
		Set control = .CreateButton("TriggerErrorNone", place := Array(35, 20, 70, 10))
		control.Caption = "Trigger an error"
		control.OnActionPerformed = errnomgt

		Set control = .CloneControl("NoErrorMgt", "BasErrMgt", left := 20, top := 35)
		control.Caption = "Basic error management"
		Set control = .CloneControl("TriggerErrorNone", "TriggerErrBas", left := 35, top := 45)
		control.OnActionPerformed = errbasicmgt

		Set control = .CloneControl("NoErrorMgt", "ErrMgt", left := 20, top := 60)
		control.Caption = "Customized error management"
		Set control = .CloneControl("TriggerErrorNone", "TriggerErr", left := 35, top := 70)
		control.OnActionPerformed = errsfmgt

	End With

End Sub
